Official Sinsim catalogue
Compact multi‑function machines
Home, commercial, cap, chenille, tape and sequin machines — PA/PB, PD, PEC, PEJ, PEX and ASP series, with full model configurations.

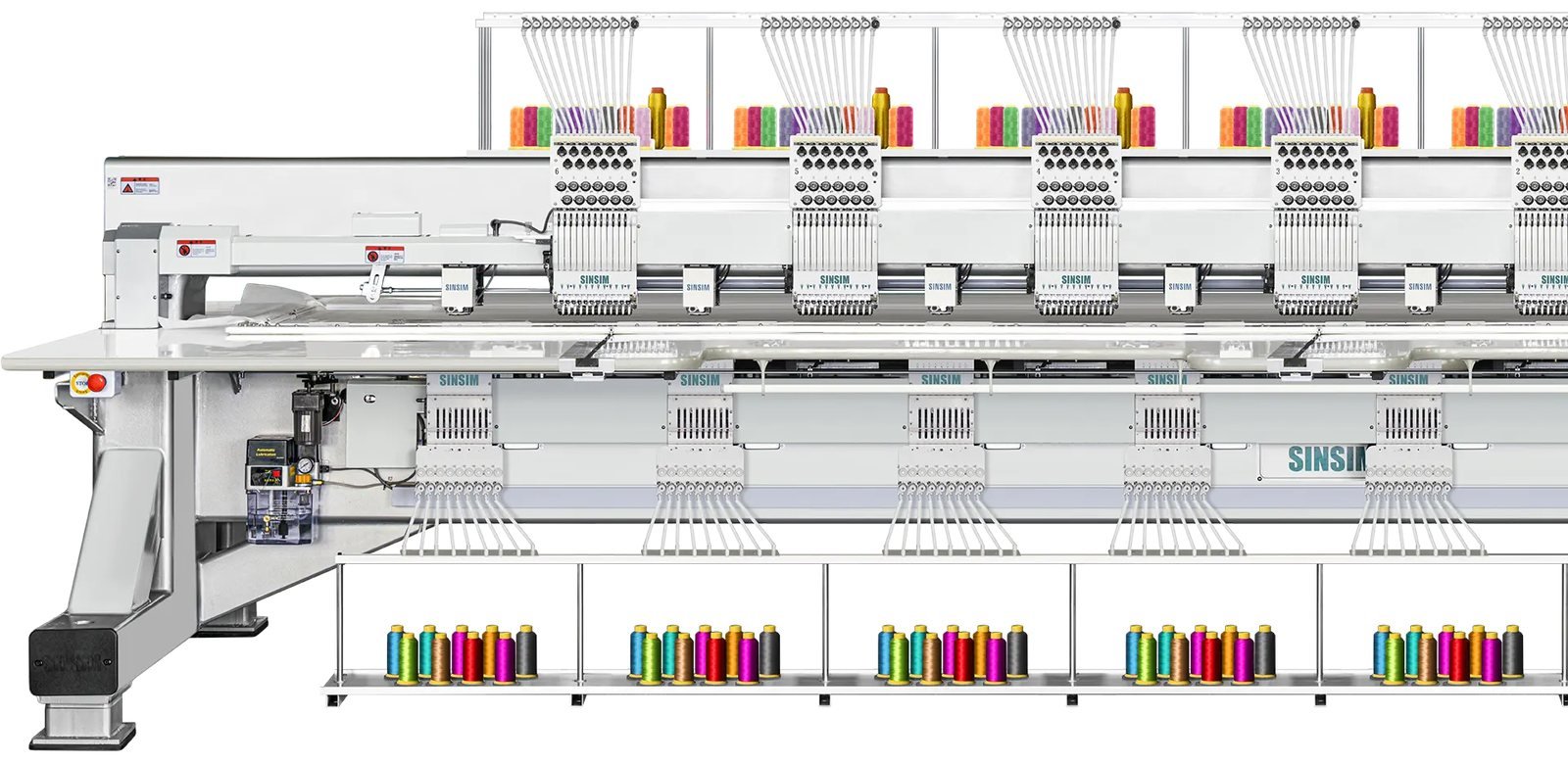

The complete Sinsim machine range
Sixteen machine series across four families — filter by category or compare at a glance to find the right fit for your production floor.
Machine Selector
Sixteen machines. Let's narrow it to two.
Three questions — the same ones our sales engineers ask on the phone. No email required.
Based on your answers
Not what you expected? These are starting points, not verdicts — call us and we will talk it through properly.
1 head · 12/15 needles

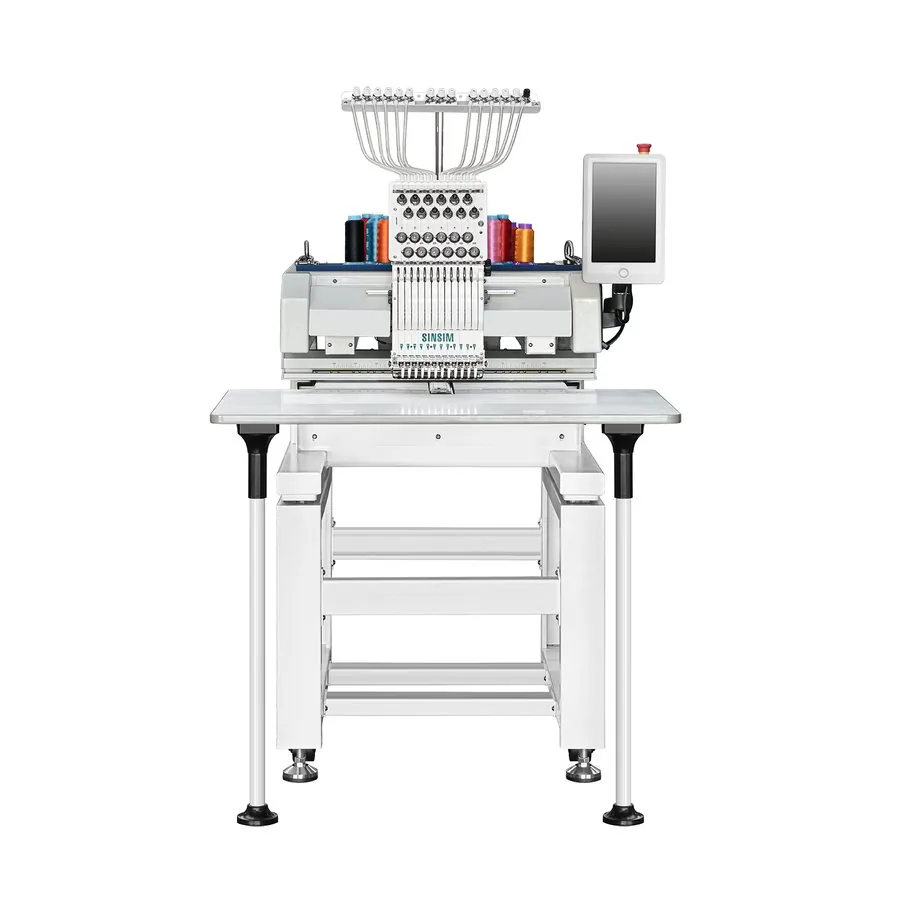

PEC‑HOME
Compact single-head machine for boutiques, online stores, home studios and startups — flat, cap, sock, shoe and garment embroidery on one machine.
1–4 heads · 12/15 needles

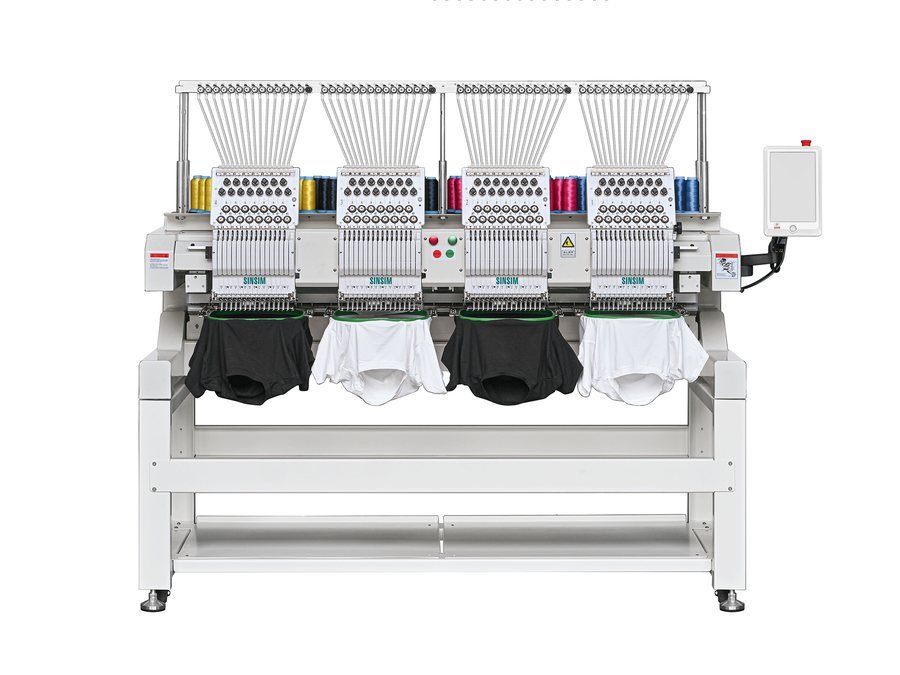

PEC‑COMMERCIAL
1–4 head commercial series with the same multi-application flexibility as PEC-HOME, scaled for retail production volumes.
1 head · 12/15 needles
PD SERIES
Single-head commercial machine for flat, garment, cap, sock and shoe embroidery, with embroidery areas from 500×350 to 1200×500 mm.
6 / 8 / 12 heads
PEJ SERIES
Multi-head cap machine in 6, 8 or 12 heads for flat, garment, cap, sock and shoe embroidery, up to 1,200 RPM.
1 head · 12/15 needles

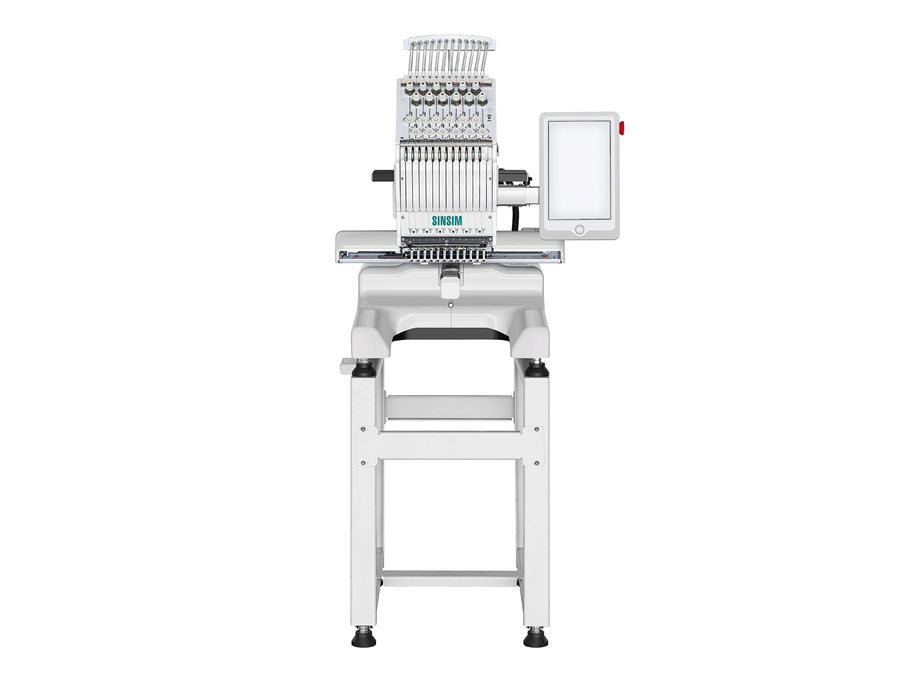

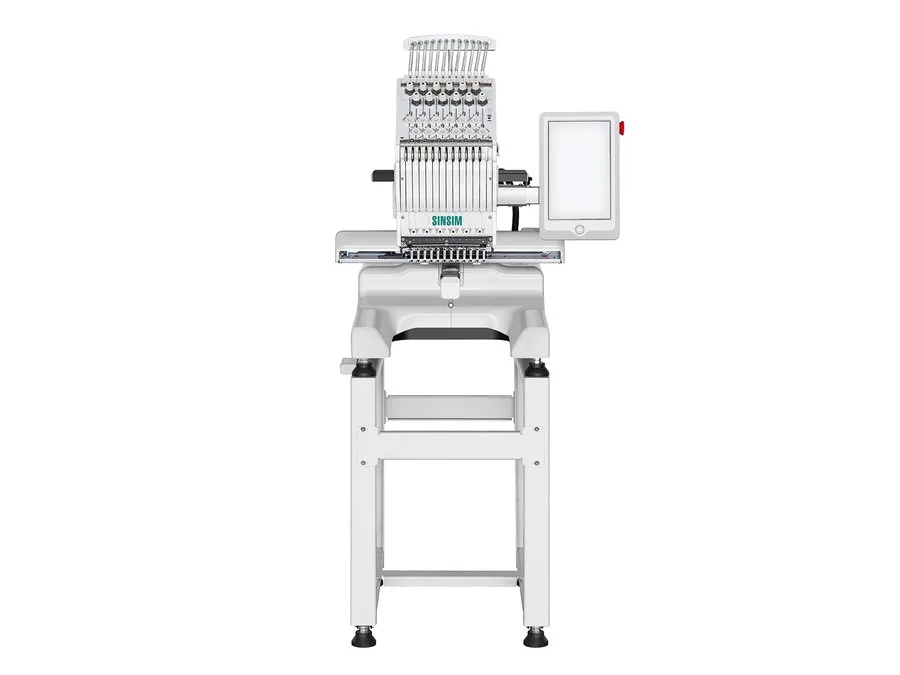

HOME MACHINE PA/PB
Single-head home machine with 12 or 15 needles, a 350×200 mm embroidery area and flat, garment, cap, sock and shoe hoops.
1+1 heads

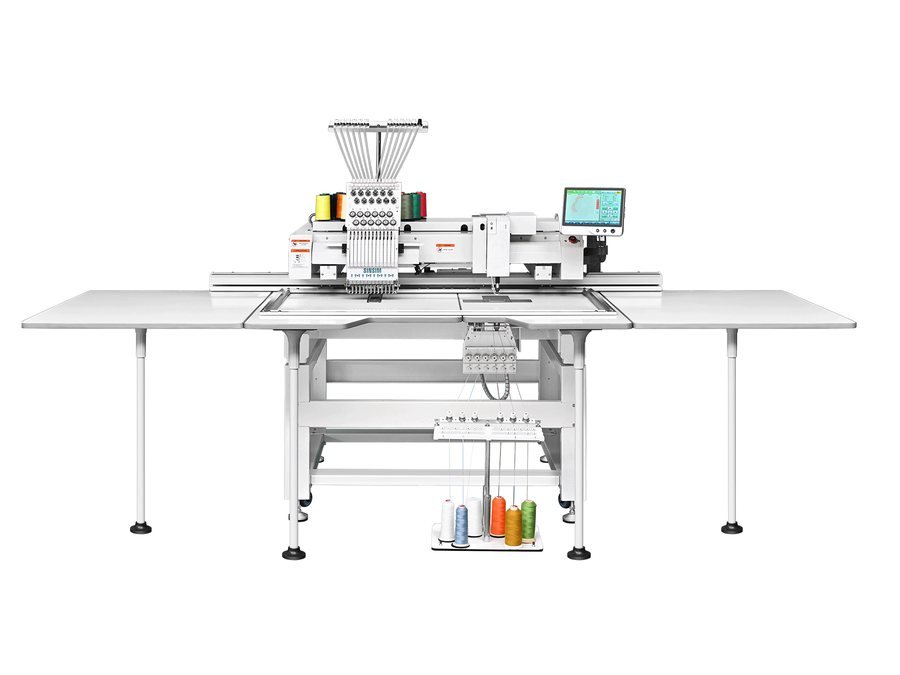

PEX CHENILLE SERIES
One flat head plus one chenille head on a compact machine: 9/12/15 flat needles, 6 chenille needles, 1200×600 mm area.
1+1 heads

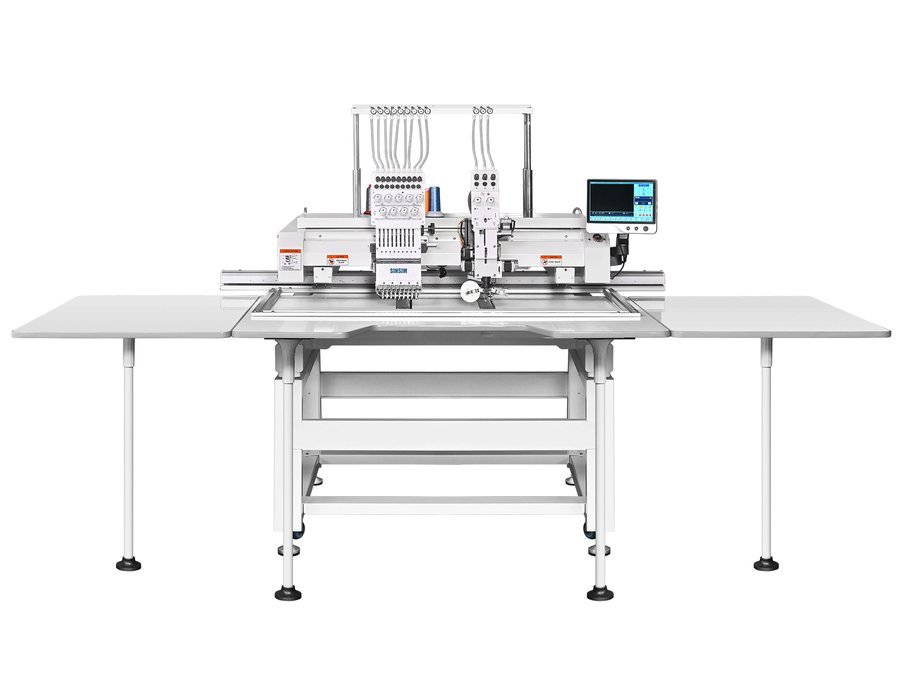

PEX TAPE SERIES
One flat head plus one tape head on a compact machine: 9/12 flat needles, 1200×600 mm area, tape embroidery up to 900 RPM.
Up to 12 colors
AUTOMATIC SEQUIN PUNCH PRESS
ASP series sequin punch press: up to 12 colors per single head, sequins from 0.4 mm and a 1,000 RPM control system.
Up to 1,500 RPM
FABRIC EMBROIDERY MACHINE
High-speed embroidery on knitted, woven, cotton/linen, leather, polyester and synthetic fibers — up to 1,500 RPM across 8–31 heads.
18–30 heads

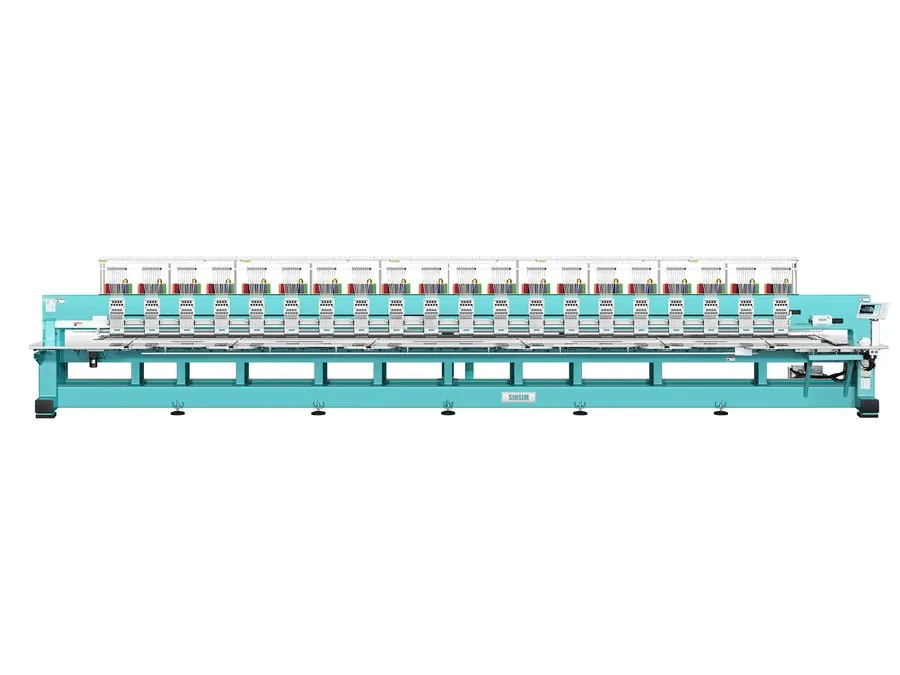

GARMENT PIECE EMBROIDERY MACHINE
Flagship high-output series for garment panels, patches and crafts — fine embroidery on thick and thin fabrics alike.
Up to 270 heads

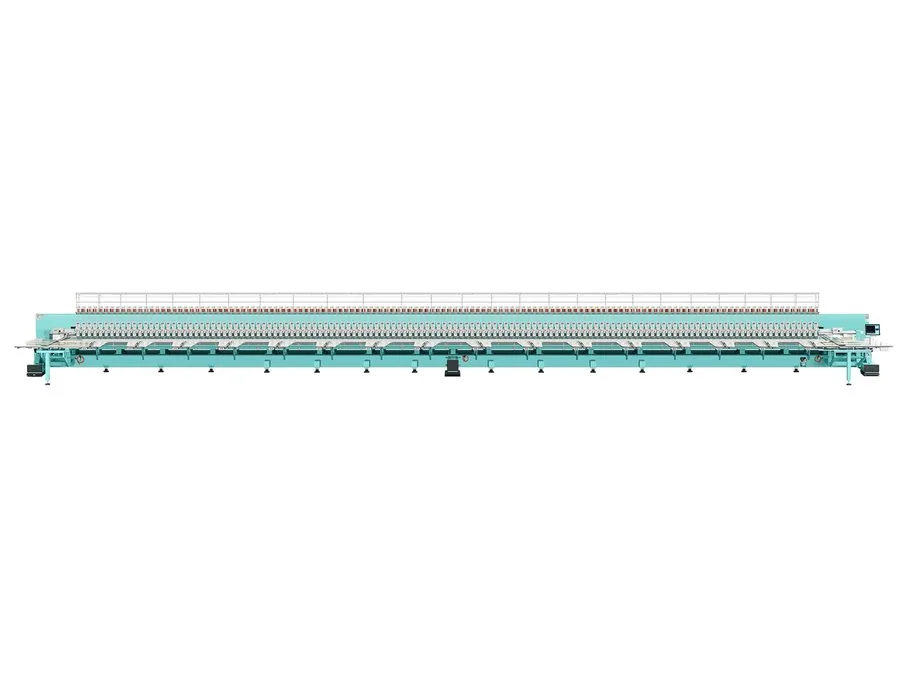

LACE EMBROIDERY MACHINE
Mass production of lace for toys, handbags, footwear, children's clothing, bedding, curtains and home textiles — up to 270 heads.
15 needles · large format

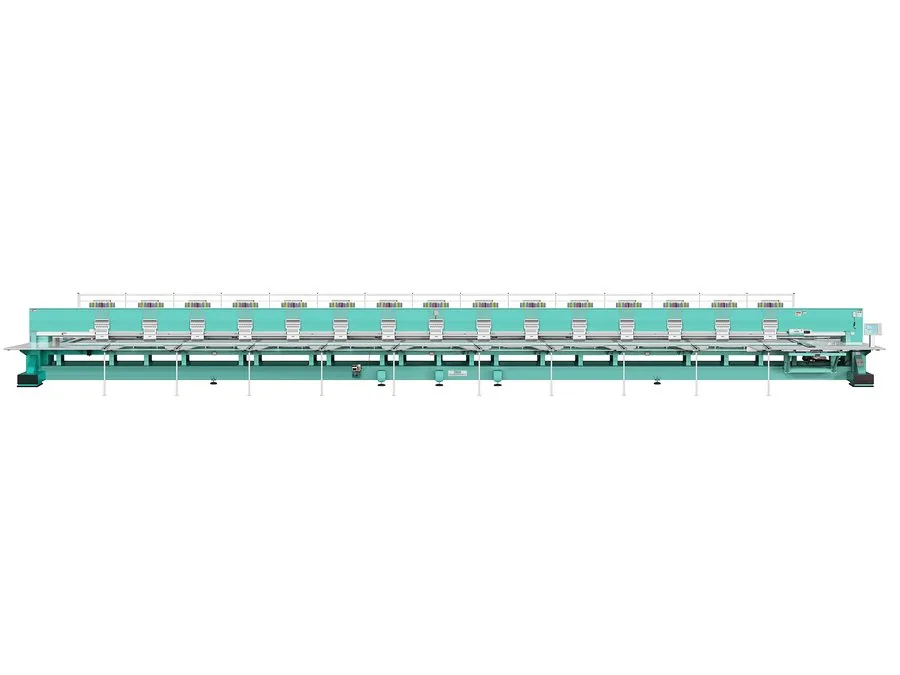

HOME TEXTILES EMBROIDERY MACHINE
Large-format series for bed sheets, quilt covers and pillowcases with embroidery areas up to 1300×1800 mm.
Flat + chenille combo

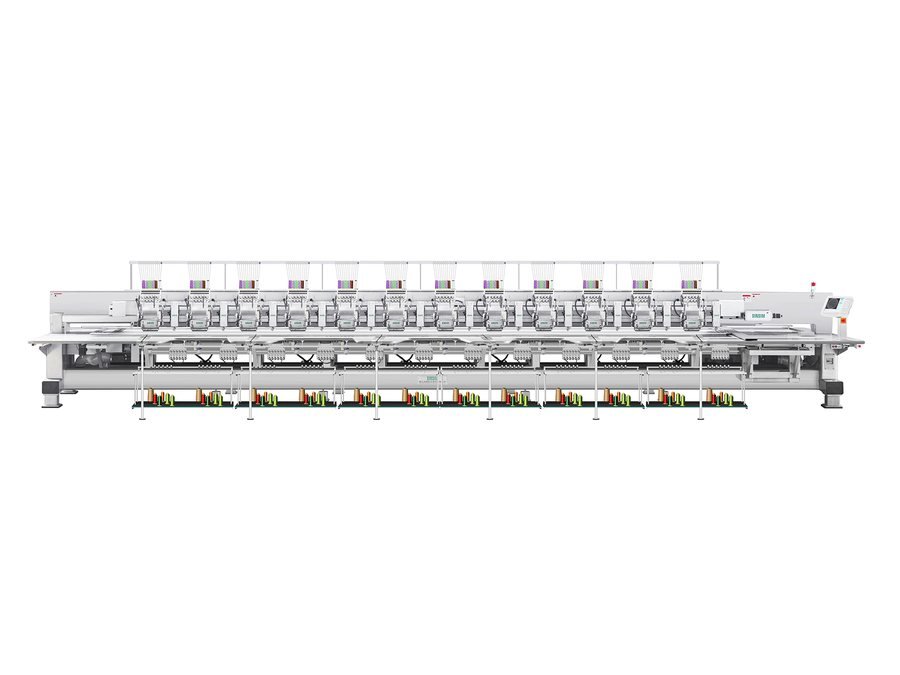

CHENILLE/CHAIN STITCH MACHINE
Flat, chenille and chain stitch in a single embroidery — stereoscopic texture for children's wear, home décor and footwear.
4–20 heads

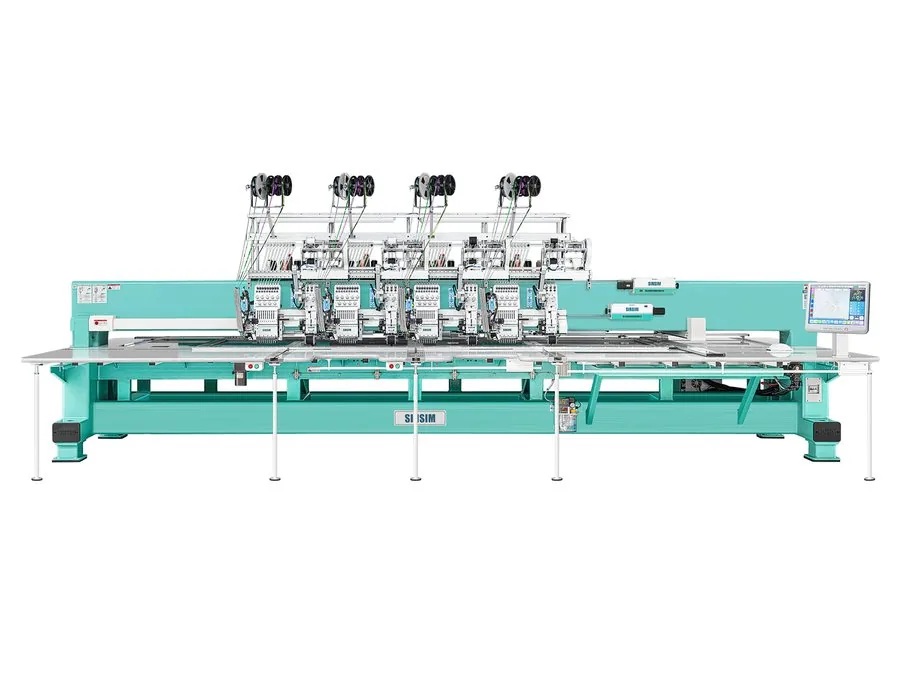

TAPING/COILING EMBROIDERY MACHINE
Coiling, flat tape, cording, feather-stitch and zigzag effects with robotic multi-color tape/coil changing — for fashion, wedding dresses and home textiles.
Flat + tufting

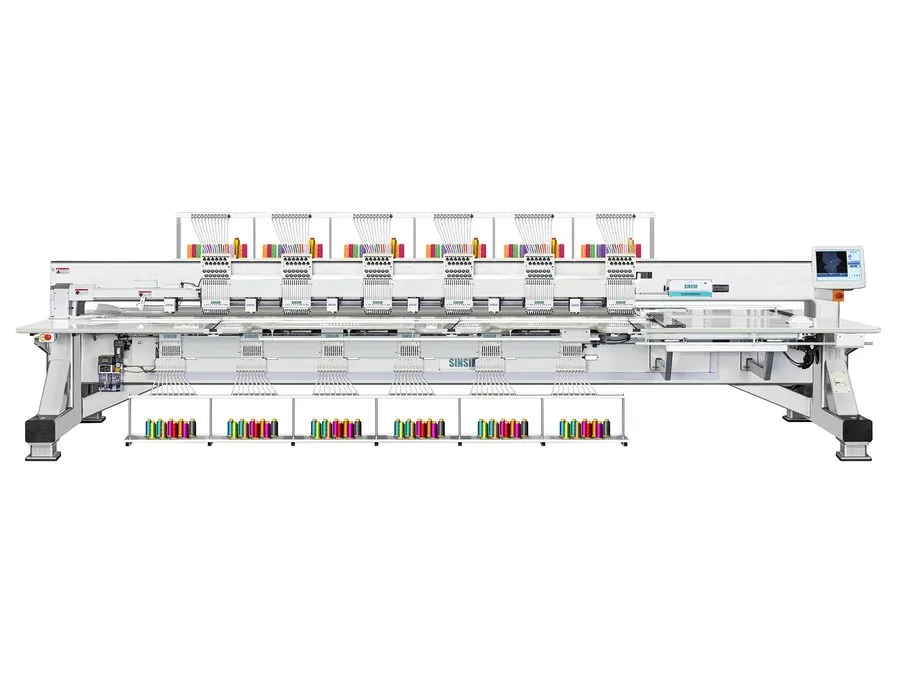

TUFTING STITCH EMBROIDERY MACHINE
Flat + tufting combined machine that switches automatically between flat and tufting embroidery.
Auto fabric feed

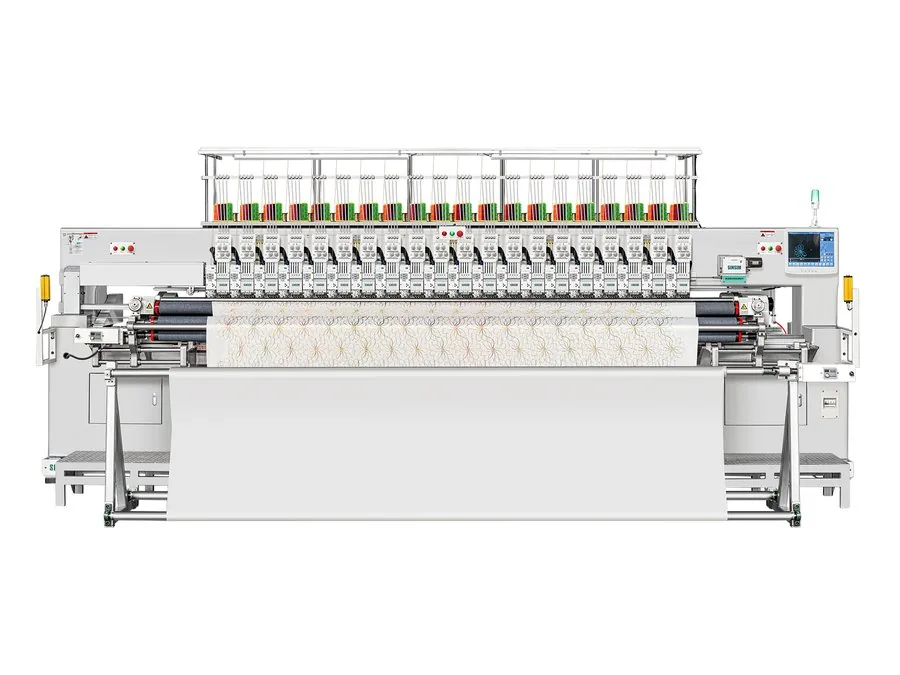

QUILTING EMBROIDERY MACHINE
High-speed quilting with automatic fabric feeding and rolling systems for seamless continuous processing.
6 devices + automation
EMBROIDERY DEVICES & ATTACHMENTS
Sequin, bead, easy-cording, easy-chenille, boring and laser cutting devices, plus automatic equipment, as listed in the official catalogue.
All machine series
FRAMES & ACCESSORIES
Tubular, cap, flat, sock, tape and strong magnetic frames and the multi-function clamp for the minitype machines.
Compare
The four families at a glance
Every machine page carries the full model table from the official 2025 catalogue.
| Multi-Function Minitype Machines | Flat Embroidery Machines | Special Embroidery Machines | Additional Equipment & Devices | |
|---|---|---|---|---|
| Series | PA/PB · PEC · PD · PEJ · PEX | FD/FC fabric · GD garment · LS/LB/LC lace · HC home-textile | MT/T chenille · MC taping · MF tufting · quilting · ASP sequin punch | Sequin, bead, easy-cording, easy-chenille, boring, laser cutting |
| Ideal For | Boutiques, studios, custom shops | Batch & export production | Texture, couture & dimensional work | Extending existing machines |
| Heads | 1 – 12 | 8 – 270 by series | 4 – 32+32 combined | Device add-ons |
| Max Speed | 1,200 RPM flat · 1,000 cap | 1,500 RPM | Up to 1,500 RPM by series | By device |
Product structure
How to read a Sinsim model code.
A model name tells you the needles, heads, head interval and embroidery area. This is the example Sinsim gives in its official catalogue.
MTDModel code
12+6Flat + chenille needles
12+12Head number
600Head interval (mm)
900*1000X/Y embroidery area (mm)
Inside every machine
- Machine body / table system
- Mainshaft drive system
- Trimmer / hook thread system
- Frame drive system
- Color changing system
- Computer system
- Additional device
Download centre
Brochures & official catalogues.
Official Sinsim catalogues, presented by Sinsim PRI — with India pricing, installation and service from your local partner.
Official Sinsim catalogue
Complete embroidery range
Lace, garment-piece, fabric, home-textile, sequin, taping, chenille, tufting and quilting machines, with specification tables (English / Chinese).
Not sure which machine fits your floor?
Tell us your product mix and order volume — we’ll recommend a configuration and send a formal quote.
