Special Embroidery Machine Series
Automatic sequin punch press machine
ASP series. Up to 12 colors per single head at 1,000 RPM.
- Colors
- Up to 12 per head
- Min. sequin
- 0.4 mm
- Speed
- 1,000 RPM
Widely applied in apparel, footwear, luggage & bag, home textiles and decorative crafts industries. Supports integrated techniques combining embroidery, laser processing and mechanical sequin punching to enhance customized design possibilities.
Vibrant color options with up to 12 colors per single head.
Diverse shapes selection: minimum size 0.4mm, optional sizes 0.6/0.8/1.0/1.2/1.5/2.0/3.0/4.0/5.0mm, special shapes include plum blossom/crescent/square/star.
High-precision feeding: 0.1mm spacing accuracy, 0.05mm sequin overlapping accuracy, prevents flipping/missing.
Dedicated industrial-grade control system operating at 1000rpm.
What the automatic sequin punch press is built with.
- Maximum Speed: 1000 RPM
- Automatic color changing function
- Automatic material feeding
- Automatic material collection
- Intelligent thread break detection system
- One-touch power failure reset function
- One-touch hoop retraction/advancement function
- Automatic alarm for design over-limit
- One-touch return to embroidery origin
- Modular punch head design: interchangeable combinations with long service life
- Diverse punch head types: meet various requirements
- Utilizes patented Korean technology for high precision
- 360° rotating punch head (optional)
- Design projection positioning system (optional)
- Vision system (optional): performs defect detection and automatic patch replenishment
How it works for you.
Head structure
Balanced head structure reducing vibration; positioning pin installation ensuring accuracy.
Punch head assembly
Modular design for interchangeable size combinations. Independent motor-driven sequin feeding with adjustable distance. Dual-guide system ensures high concentricity and extended service life.
Patch embroidery frame
High-precision lightweight floating frame ensures consistent needle penetration depth. Closed-loop XY control system delivers quiet operation and high accuracy. Electrostatic film design: high viscosity and precision, sticker switching convenience. Real-time display of embroidery patterns and frame boundaries with automatic out-of-range alarm function to minimize material waste.
Additional functions (optional)
360° punch head rotation: punch head achieves full 360° rotation to accommodate diverse pattern requirements. Projection system: projects complete sequin patterns onto the frame with high positioning accuracy. Vision inspection: detects defects (missing/extra/flipped sequins) and enables one-touch rework, boosting efficiency while reducing scrap rate.
Korean technology
Exclusive Korean technology and patented modular punch head components with imported wear-resistant needles.
Missing piece detection
Missing piece detection, one-touch threading/feeding, active material pulling with user-friendly scrap collection system.
Models and specifications
All 2 configurations listed in the official catalogue. Scroll sideways on a phone to see every column.
General machine specifications
| Model | Colors | Heads | Head interval (mm) | Frame area (mm) | Work area (mm) | Machine size (mm) | Standard punch sizes (mm) |
|---|---|---|---|---|---|---|---|
| ASP1201 | 12 | 1 | 0 | 510*450 | 450*400 | 1210*1020 | 0.8*3+1.0*2+1.2*2+1.5*2+2.0*2+3.0*1 |
| ASP804 | 8 | 4 | 600 | 530*590 | 490*550 | 3450*1417 | 0.8*2+1.0*2+1.2*2+1.5*1+2.0*1 |
ASP model configuration (compact catalogue)
| Model | ASP |
|---|---|
| Max embroidery area X*Y (mm) | 450*400 |
| Max speed (RPM) | 1000 |
| Machine power | 300W |
| Dimensions (mm) | 1220*1220*1570 |
| Spindle system | Servo Motor |
| Language support | Chinese/English/Spanish/Turkish/French/Portuguese/Japanese/Korean/Thai/Italian/German/Indian/Vietnamese, etc |
Specifications and descriptions on this page are taken from the official Sinsim full-range catalogue 2025 (pages 23–24; compact pages 15–16). Dimensions are in millimetres as printed. Sinsim builds to order, so confirm the final configuration with us before purchase.
Built with brands the industry trusts.
Sinsim builds with internationally recognised component brands, as featured in its official catalogue. Optional sequin, bead, cording, laser and boring devices are described on our devices page.
- Groz-Beckert
- Schmetz
- Organ
- Hirose
- Dotec
- Koban
- Desheng
- Kobest
Related machines
EMBROIDERY DEVICES & ATTACHMENTS
Sequin, bead, easy-cording, easy-chenille, boring and laser cutting devices, plus automatic equipment, as listed in the official catalogue.
Full Details
PEC‑COMMERCIAL
1–4 head commercial series with the same multi-application flexibility as PEC-HOME, scaled for retail production volumes.
Full Details

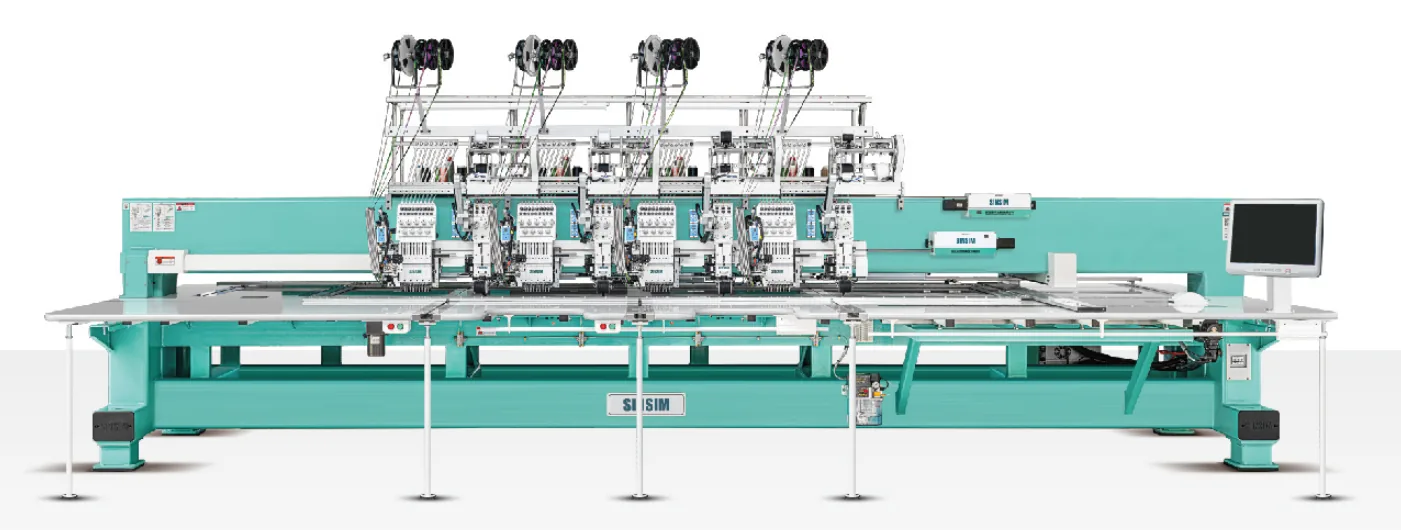

TAPING/COILING EMBROIDERY MACHINE
