Embroidery devices & attachments
Sequin, bead, cording, easy-chenille, boring and laser cutting devices, automatic equipment and frames for Sinsim embroidery machines — as listed in the official 2025 catalogue.
Additional device 01

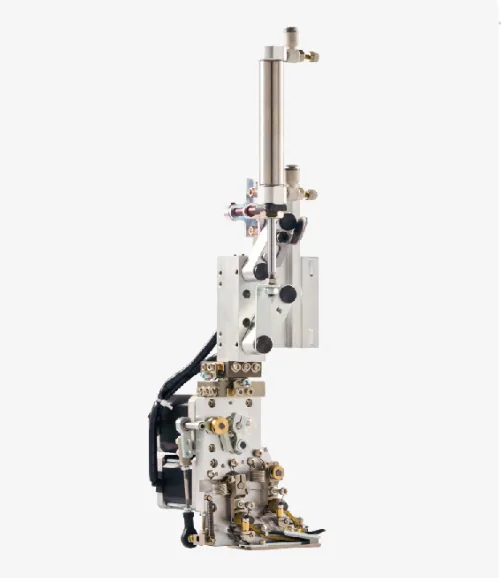

Sequin device
- Achieves 12-color embroidery effects in various sizes and shapes through simple adjustments without needle position changes.
- Operates at a stable embroidery speed of 1,200 SPM, with an ultra-high-speed option reaching up to 1,500 SPM.
- Processes ø2–40mm sequins via quick-change accessories.
- Optional sequin devices: Single sequin / Overlapped sequin / 4-sequins / 6-sequins / 8-sequins / 12-sequins / Movable sequin devices.
- Innovative movable sequins device enables perfect color matching between upper thread and sequins.
Additional device 02

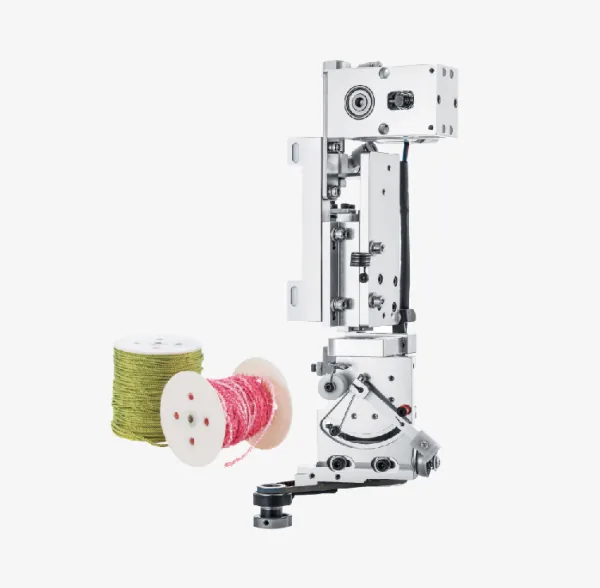

Easy‑cording device
- Simple yet robust construction with modular design enables flexible installation and economical machine function extension.
- Supports embroidery of various ø1–5mm cords, tapes, coils, beaded strings, and sequin cords.
- High efficiency with stable embroidery at a maximum speed of 1200 RPM.
- Configurable options: Single/Dual/Triple-color and modular cording devices.

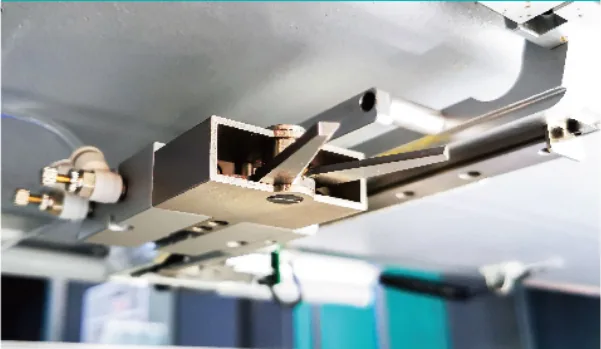

- Optional independent automatic cord trimming system.
Additional device 03

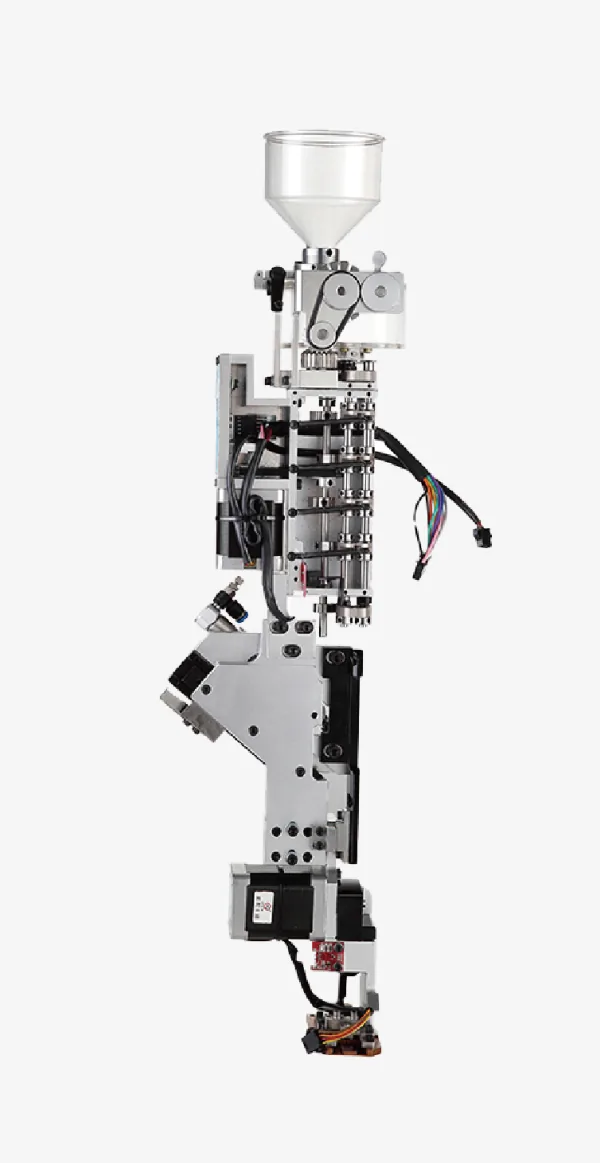

Bead device
- With quick-change accessories, handles bead embroidery from ø1.7–4mm and spring wire embroidery in ø5/7/9mm sizes.
- Processes various bead types: scattering beads / tube beads / pearl beads / diamond beads / rice beads and spring wires.
- Enables hybrid embroidery combining beads, sequins and wires for enhanced value.
- High-precision mechanism ensures stable operation exceeding 850 RPM.
- Performs 1 to 5 color bead embroidery with optional multi-color bead + dual/triple-color sequin overlay effects.
Additional device 04

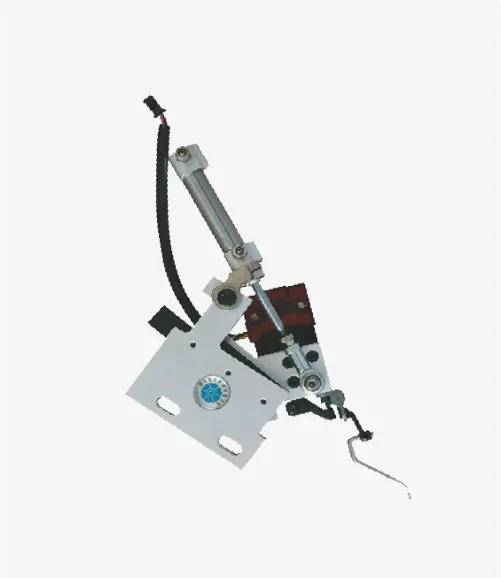

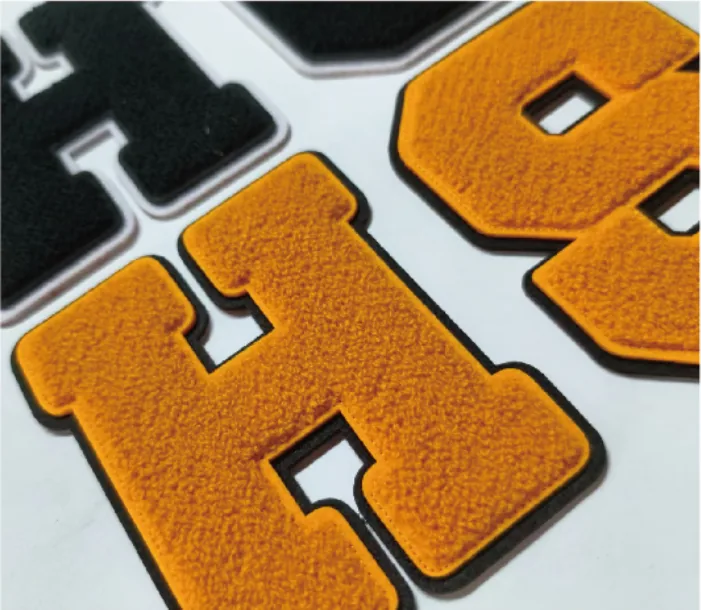

Easy‑chenille device
- The Easy-Chenille Device adjusts the relative position of the swing arm via pneumatic valve lifting/lowering, and the swing arm cooperates with the lifting/lowering of the presser foot and needle bar to form the stitches of basic chenille embroidery.
- With simple and quick installation, this cost-effective basic chenille embroidery type is widely used in the processing of garments, footwear, headwear, decorations and other processing fields.
- It boasts broad market prospects, expands the combination scope of lockstitch embroidery, and unlocks endless imagination for pattern design.
Additional device 05

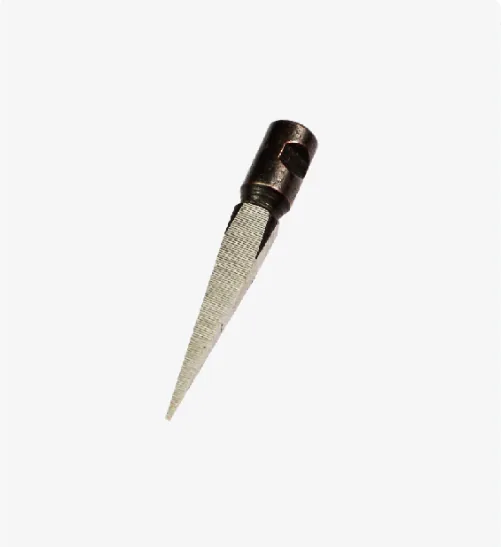

Boring knife
- During embroidery, creates precision perforations following pattern requirements, then executes decorative stitching combinations inside/around the holes using multiple techniques.
- Optional boring knife or boring needle can be easily mounted on the embroidery machine head.
- Achieves high-speed fabric perforation based on conical blade specifications and pattern design.
Additional device 06

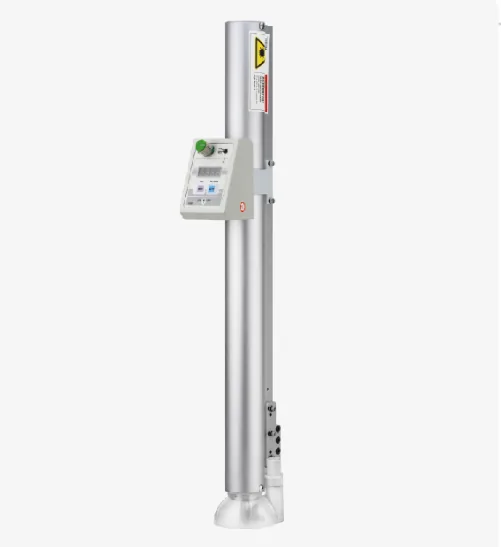

Laser cutting device
- Suitable for embroidery, edge cutting, perforation, appliqué, lace carving, and layered cutting on various fabric compositions including garment panels, fabrics, toys, knitwear, leather goods, home textiles, and decorative textiles.
- Flexible laser transmission is safer and more stable with simple operations, featuring user-friendly controls and high-speed performance, enriched embroidery techniques, and enhanced product added value.
- Single-step embroidery and cutting techniques (including partial perforation and layered appliqué cutting).
- Compact footprint with optional fiber laser / RF laser models and multiple power outputs.

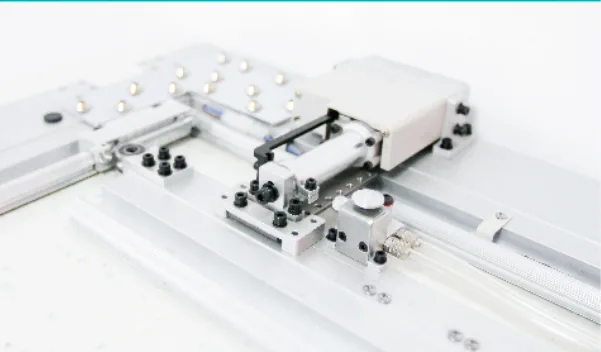

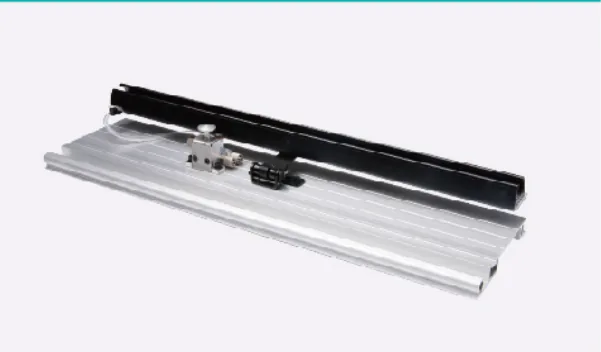

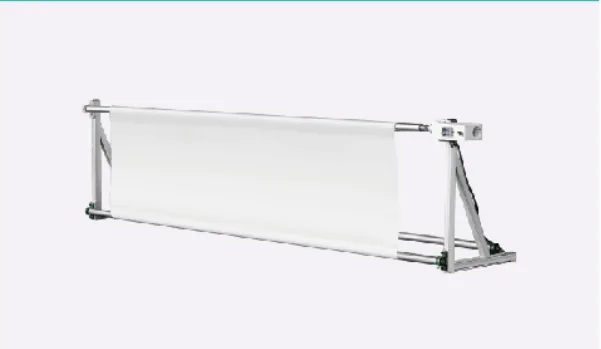

Automatic equipment
Automation that keeps heads running.
Sinsim lists the following automatic equipment for its multi-head machines. Availability depends on the machine series and head interval.
Optional frames
One machine, many products.
The multi-function minitype machines embroider caps, finished garments, shoes, bags and socks by changing the frame. Sinsim lists these optional accessories:
- Tubular Frame
- Cap Frame

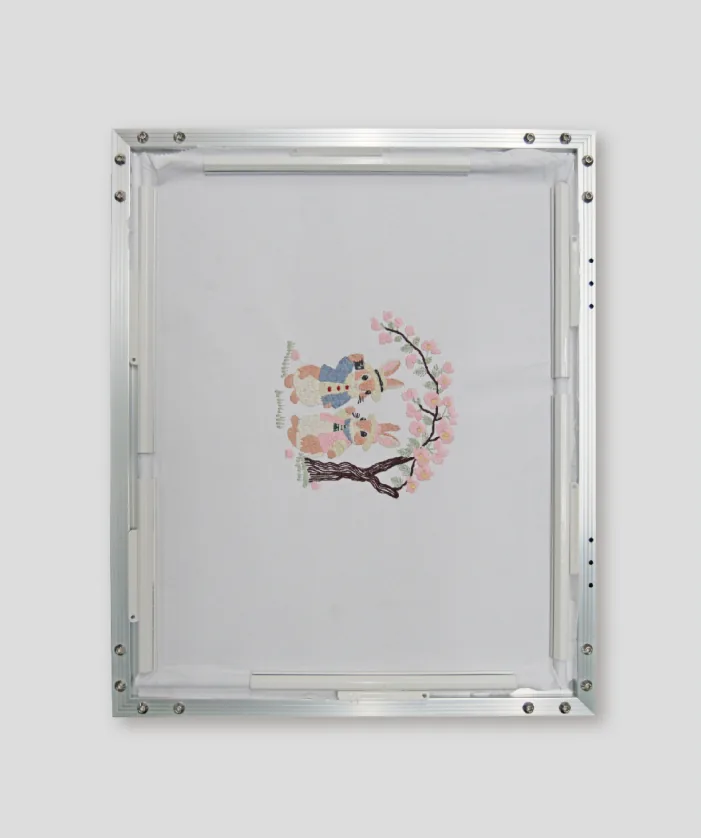

- Flat Frame
- Sock Frame
- Tape Frame
- Strong Magnetic Frame

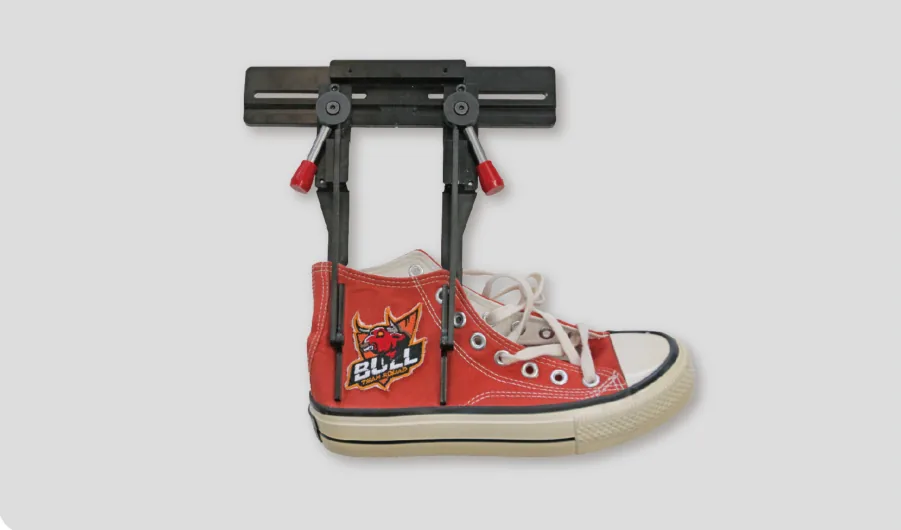

- Multi-function Clamp
Technology
Presser foot, projection and vision.
Key technologies described in the official compact machines catalogue.
01
DFC intelligent presser foot control technology
- 3D embroidery essential features
- Long service life
- User-friendly operation
- Full-stroke presser foot ensures even stitch formation and prevents thread jamming
02
ERED presser foot technology
- Presser foot lowers to clamp fabric before needle penetration
- Needle fully retracts from fabric before foot lifts
- Press time increased by 30% compared with a conventional presser foot
03
Design projection positioning technology
- Precise projection, instant clarity
- Embroidery results, visible in advance
04

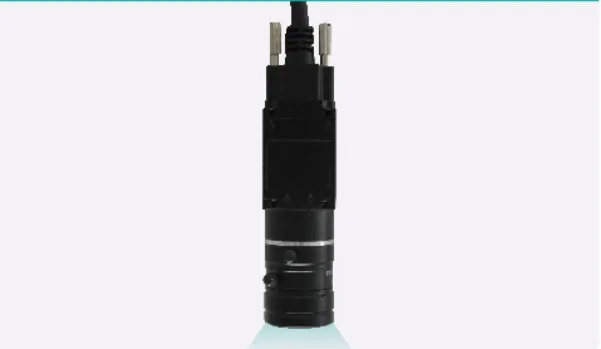

Vision system
- Auto-edge detection embroidery
- Visual positioning embroidery
- Sequins abnormality detection
- Auto-mending for missing sequins
Compatibility
Which machine takes which device.
Device support exactly as stated on each machine’s page in the catalogue.
| Machine | Device support |
|---|---|
| PEC1 (1 head) | Sequin / Easy-Cording / Laser / Bead / Easy-Chenille |
| PEC2 and PEC4 (2 and 4 heads) | Sequin / Easy-Cording |
| PD Series | Sequin / Easy-Cording / Laser / Bead / Easy-Chenille / Boring Knife |
| PEJ Series | Sequin / Easy-Cording / Easy-Chenille |
| PEX Chenille Series | Sequin / Bead / Easy-Cording / Laser / Easy-Chenille |
| PEX Tape Series | Sequin / Beads / Easy-Cording / Laser / Easy-Chenille |
| Taping/Coiling machine | Sequin, easy-cording, bead, laser cutting and boring devices, based on head interval |
| Chenille/Chain Stitch machine | Sequin, easy-cording, bead, laser cutting and boring devices, based on head interval |

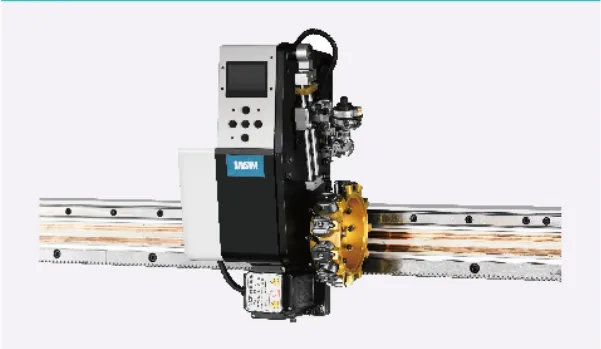

| Quilting machine | Sequin device, easy-cording device, bead device, laser cutting device, automatic bobbin changer |
| Lace and Fabric machines | Optional embroidery devices of different types and specifications based on head interval |
Source: official Sinsim full-range catalogue 2025 (pages 35–38) and compact machines catalogue 2025 (pages 17–21). Device fit depends on your machine’s model and head interval — confirm with us before ordering.
