Multi-Function Minitype Embroidery Machine
PD series commercial machine
Single-head commercial machine with areas up to 1200×500 mm.
- Heads
- 1
- Needles
- 12 / 15
- Max speed
- 1,000 RPM
Suitable for flat, garment, cap, sock, shoe embroidery and other applications.
- Auto thread trimming system
- Auto thread break detection
What the PD series commercial is built with.
- Suitable for flat, garment, cap, sock, shoe embroidery and other applications
- Maximum Speed: 1000 RPM
- Automatic color changing function
- Automatic thread trimming function
- Automatic thread locking function
- Intelligent thread break detection system
- One-touch power failure reset function
- One-touch hoop selection function
- Automatic frame moving function
- One-touch hoop retraction/advancement function
- Automatic alarm for design over-limit
- Emergency stop button configured
- Wireless design transmission function
- Standard red light positioning, optional high-precision cross positioning
Models and specifications
Configuration exactly as listed in the official catalogue.
Model configuration
| Model | PD Series |
|---|---|
| Heads | 1 |
| Needles | 12 / 15 Needles |
| Max embroidery area X*Y (mm) | 500*350 / 500*400 / 600*400 / 800*500 / 1200*500 |
| Cap embroidery range X*Y (mm) | 260*65 |
| Max speed (RPM) | 1000 |
| Voltage (V) | 100~230 |
| Spindle system | Servo Motor |
| XY drive system | Open-Loop Stepping Motor |
| XY drive structure | Bottom Support |
| Hoop support | Flat/Garment/Cap/Sock/Shoe |
| Device support | Sequin/Easy-Cording/Laser/Bead/Easy-Chenille/Boring Knife |
Specifications and descriptions on this page are taken from the official Sinsim compact machines catalogue 2025 (pages 05–06). Dimensions are in millimetres as printed. Sinsim builds to order, so confirm the final configuration with us before purchase.
Built with brands the industry trusts.
Sinsim builds with internationally recognised component brands, as featured in its official catalogue. Optional sequin, bead, cording, laser and boring devices are described on our devices page.
- Groz-Beckert
- Schmetz
- Organ
- Hirose
- Dotec
- Koban
- Desheng
- Kobest
Related machines
PEC‑COMMERCIAL
1–4 head commercial series with the same multi-application flexibility as PEC-HOME, scaled for retail production volumes.
Full Details

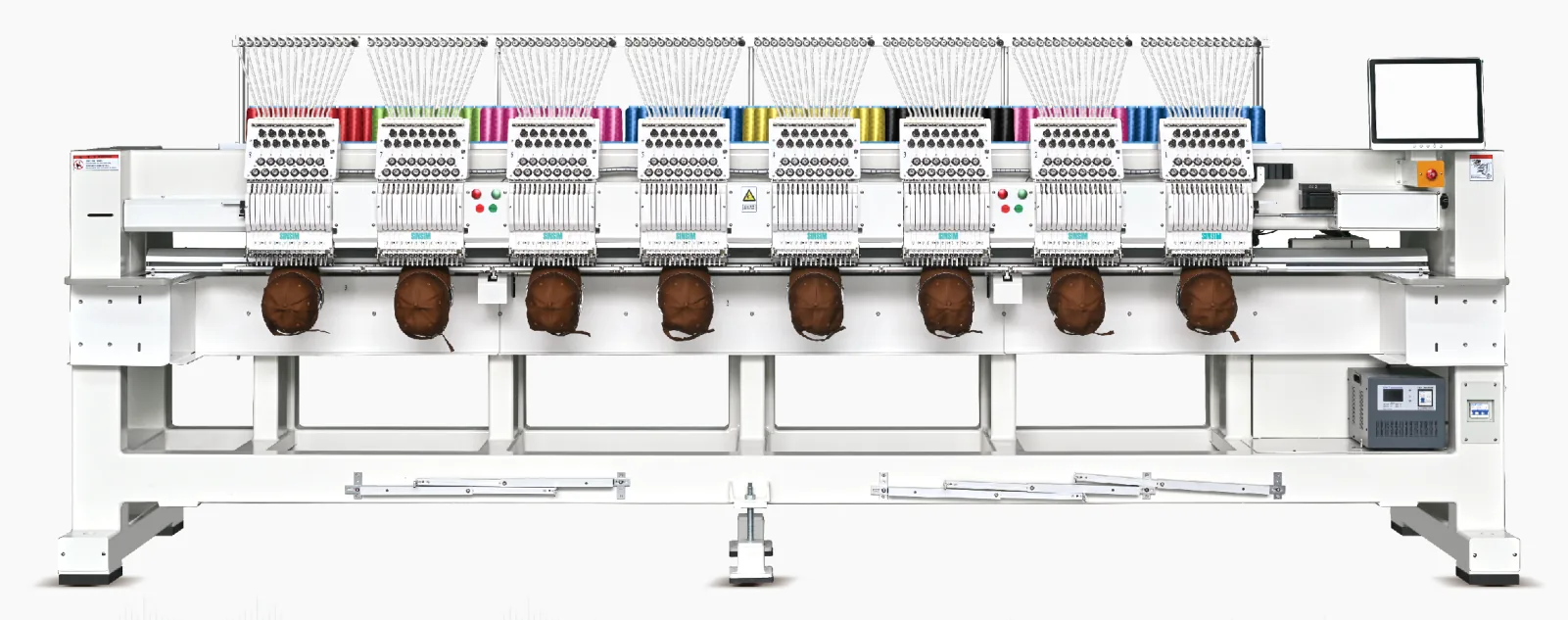

PEJ SERIES
Multi-head cap machine in 6, 8 or 12 heads for flat, garment, cap, sock and shoe embroidery, up to 1,200 RPM.
Full Details
HOME MACHINE PA/PB
Single-head home machine with 12 or 15 needles, a 350×200 mm embroidery area and flat, garment, cap, sock and shoe hoops.
Full DetailsGet a formal quote for the PD series commercial machine
Tell us what you embroider and how much. We will confirm the model, configuration, price and delivery for India. Call +91 86991 17333 / +91 86991 15333.
