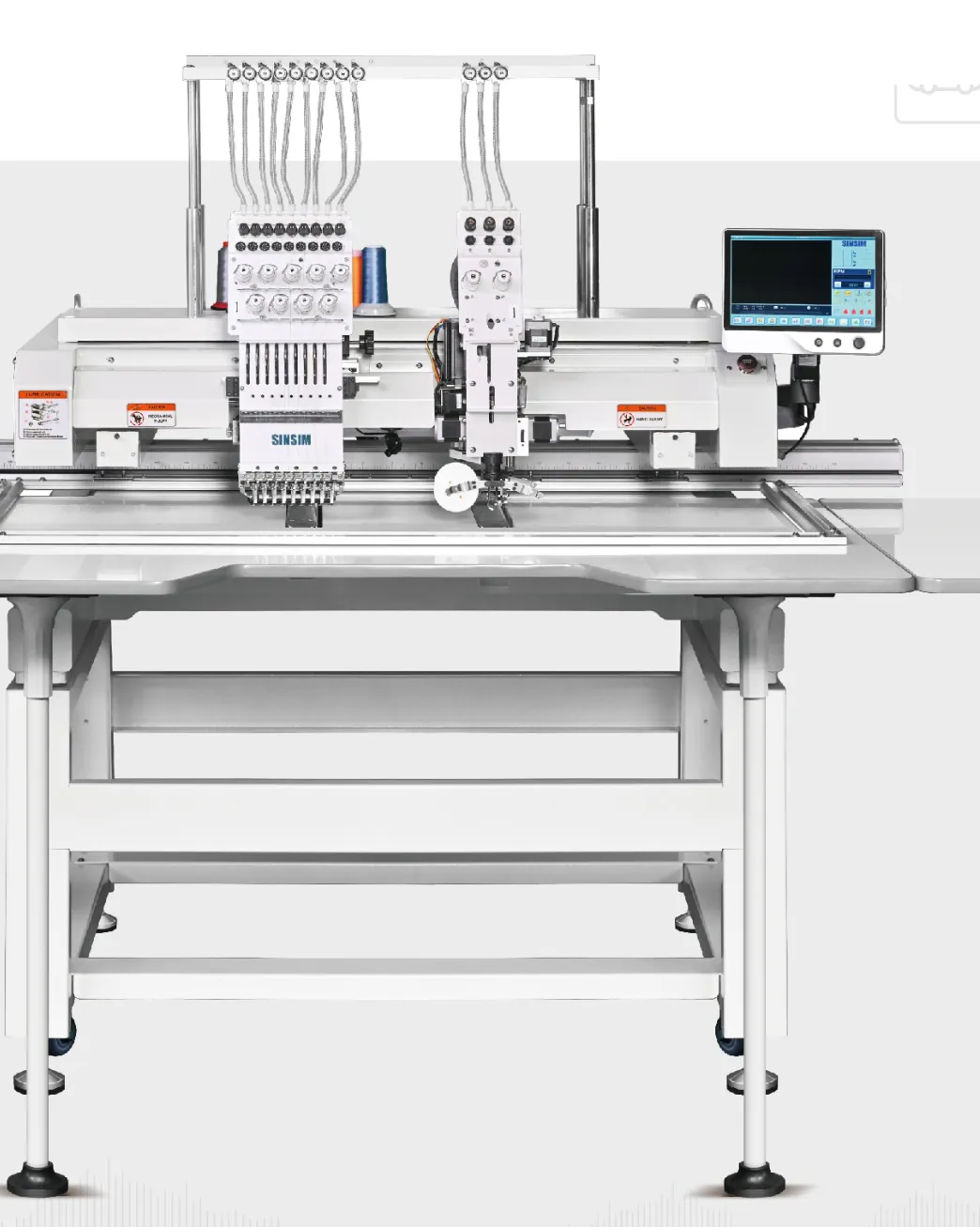

Multi-Function Minitype Embroidery Machine
PEX tape series
A flat head and a tape head on one compact machine.
- Heads
- 1+1
- Flat needles
- 9 / 12
- Max area
- 1200×600 mm
Suitable for flat, garment, cap, towel embroidery and other applications.
- Braided-Tape Presser Foot Anti-Collision System
- High performance computerized embroidery control system
What the PEX tape series is built with.
- Suitable for flat, garment, cap, towel embroidery and other applications
- 1200 RPM for flat embroidery, max 900 RPM for tape embroidery
- Automatic color changing function
- Automatic thread trimming function
- Automatic thread locking function
- Intelligent thread break detection system
- One-touch power failure reset function
- One-touch hoop selection function
- Automatic frame moving function
- One-touch hoop retraction/advancement function
- Automatic alarm for design over-limit
- Emergency stop button configured
- Wireless design transmission function
- Standard red light positioning, optional high-precision cross positioning
- Configurable with various devices
Models and specifications
Configuration exactly as listed in the official catalogue.
Model configuration
| Model | PEX Tape Series |
|---|---|
| Heads | 1+1 |
| Needle count | Flat Embroidery: 9/12 Needles |
| Head distance (mm) | 300 |
| Max embroidery area X*Y (mm) | 1200*600 |
| Machine power | 600W |
| Voltage (V) | 100~230 |
| Spindle system | Servo Motor |
| XY drive system | Closed-Loop Stepping Motor |
| XY drive structure | Suspension |
| Device support | Sequin/Beads/Easy-Cording/Laser/Easy-Chenille Embroidery |
Specifications and descriptions on this page are taken from the official Sinsim compact machines catalogue 2025 (pages 13–14). Dimensions are in millimetres as printed. Sinsim builds to order, so confirm the final configuration with us before purchase.
Built with brands the industry trusts.
Sinsim builds with internationally recognised component brands, as featured in its official catalogue. Optional sequin, bead, cording, laser and boring devices are described on our devices page.
- Groz-Beckert
- Schmetz
- Organ
- Hirose
- Dotec
- Koban
- Desheng
- Kobest
