Flat Embroidery Machine Series
Lace embroidery machine
Mass-production lace, on up to 270 heads.
- Heads
- 45 – 270
- Head interval
- 55 – 330 mm
- Max speed
- 1,500 RPM

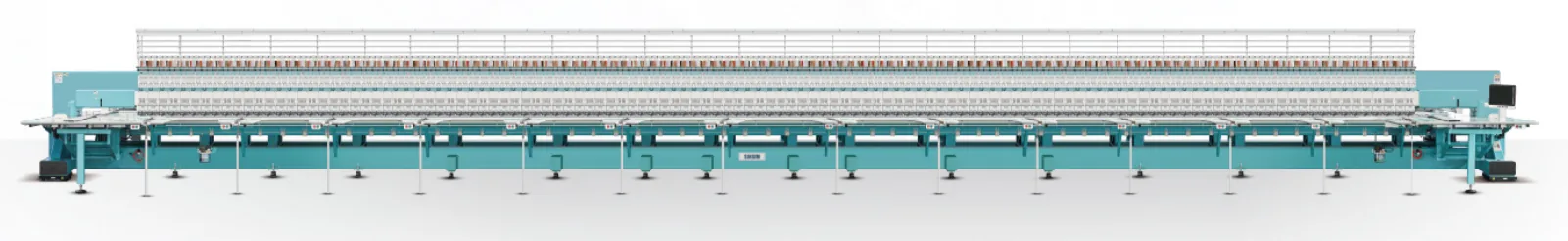

LS4240-82.5mmSINSIM brand lace embroidery machine series delivers exceptional performance in mass production across diverse applications including toys, handbags, footwear, hats, children's clothing, sweaters, underwear, bedding, curtains, towels, straw mats, fabrics, home textiles, and denim apparel.
Optional head spacing: 55/82.5/110/165 mm or hybrid configurations.
Optional models: 10/15/20/25-yard or spliced versions.
What the Lace is built with.
- Optional head structures: Single-Cam Dual-Drive Guided / Double Crank.
- High-precision gantry-milled frame structure.
- Industrial-grade high-performance computerized embroidery control system.
- Optional high-precision floating embroidery frame or C-frame.
- Intelligent lubrication system for upper/lower shafts.
- Large capacity, high speed, wear-resistant, auto-lubricated rotary hook.
- Servo motor drive, main drive with high-strength imported timing belts.
- High-precision customized gear drive box.
- High-performance upper thread clamping structure.
- High-performance stepping motor static thread trimming system.
- Machine-specific dual-system configuration: Dual-hook / Dual-color-change / Dual-drive / Dual-main shaft / Dual-Y-axis / Dual-X-axis structure.
- Optional embroidery devices of different types and specifications based on head interval.
- Compatible with automated systems: auto-thread-trimming / auto-bobbin-changing / auto-fabric-clamping / auto-frame-positioning.
How it works for you.
Internally installed high technology
Advanced technology can enhance your embroidery creation, and the machine can be equipped with automatic bobbin changing, automatic frame clamping, automatic frame lifting, automatic frame pulling and other automatic equipment to improve your embroidery production.
Mixed needle number, mixed head distance
Different head distances, different numbers of needles and different numbers of heads can be customized according to need, and individualized customization can be realized for the same model working with different head intervals and different needle numbers.
Extensible, large capacity
The super multi-head embroidery machine is useful in various textile designs and performs flexibly in embroidering range, which improves productivity greatly and fulfills market needs completely.
More color
Make the embroidery more colorful. Low cost but high returns.
Breakthrough transmission structure
Assistant main shaft with multi transmission, double color change system, multi servo motor and hanging driver system make sure the equipment runs stably.
High speed, high efficiency
Electronic presser foot and double crank model machines with advanced transmission structure let the machine running speed reach 1,500 rpm, helping you realize low cost and high productivity.
Models and specifications
All 11 configurations listed in the official catalogue. Scroll sideways on a phone to see every column.
General machine specifications
| Model | Needles | Heads | Head interval (mm) | Embroidery area (mm) | Inner frame size (mm) | Machine size (mm) |
|---|---|---|---|---|---|---|

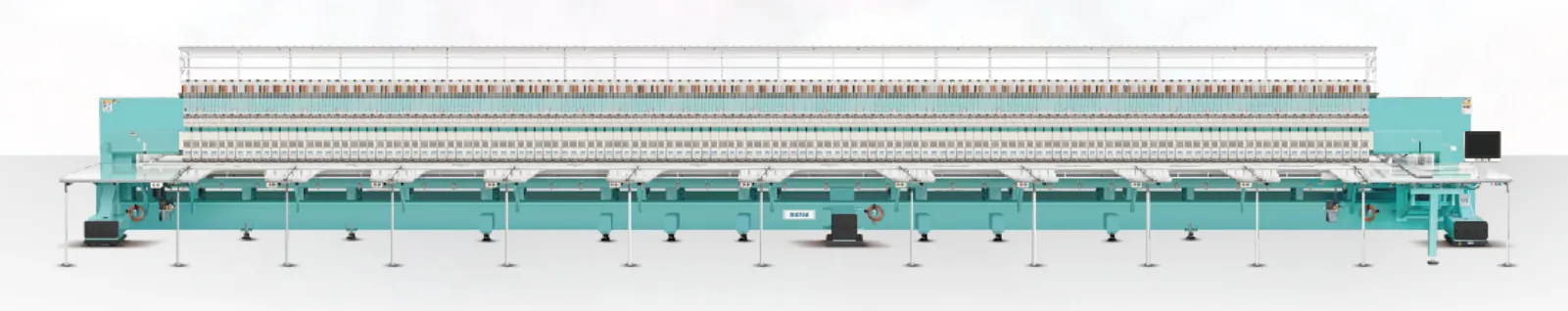

| LB(4+2)270 | 4+2 | 270 | 55 | 600*1650 | 15435*1690 | 17235*4237 |
| LS4116 | 4 | 116 | 82.5 | 700*950 | 10227.5*990 | 11878*2842 |
| LB(4+3)180 | 4+3 | 180 | 82.5 | 700*1600 | 15507.5*1640 | 17358*4142 |
| LB(4+3)240 | 4+3 | 240 | 82.5 | 700*1520 | 20457.5*1630 | 22548*3982 |
| LS4190 | 4 | 190 | 115 | 700*1600 | 22475*1640 | 24525*4137 |
| LS4132 | 4 | 132 | 110 | 700*1600 | 15150*1640 | 17000*4142 |
| LC658 | 6 | 58 | 165 | 750*950 | 10195*990 | 11895*2577 |
| LC690 | 6 | 90 | 165 | 750*1600 | 15475*1640 | 17425*4077 |
| LC6(130+2) | 6 | 130+2 | 165 | 900*1600 | 22225*1640 | 24275*4077 |
| LC945 | 9 | 45 | 330 | 900*1600 | 15460*1640 | 17560*3977 |
| LC1265 | 12 | 65 | 330 | 900*1600 | 22060*1640 | 24310*3977 |
Specifications and descriptions on this page are taken from the official Sinsim full-range catalogue 2025 (pages 07–10). Dimensions are in millimetres as printed. Sinsim builds to order, so confirm the final configuration with us before purchase.
Shown in the official catalogue.
Built with brands the industry trusts.
Sinsim builds with internationally recognised component brands, as featured in its official catalogue. Optional sequin, bead, cording, laser and boring devices are described on our devices page.
- Groz-Beckert
- Schmetz
- Organ
- Hirose
- Dotec
- Koban
- Desheng
- Kobest
Related machines

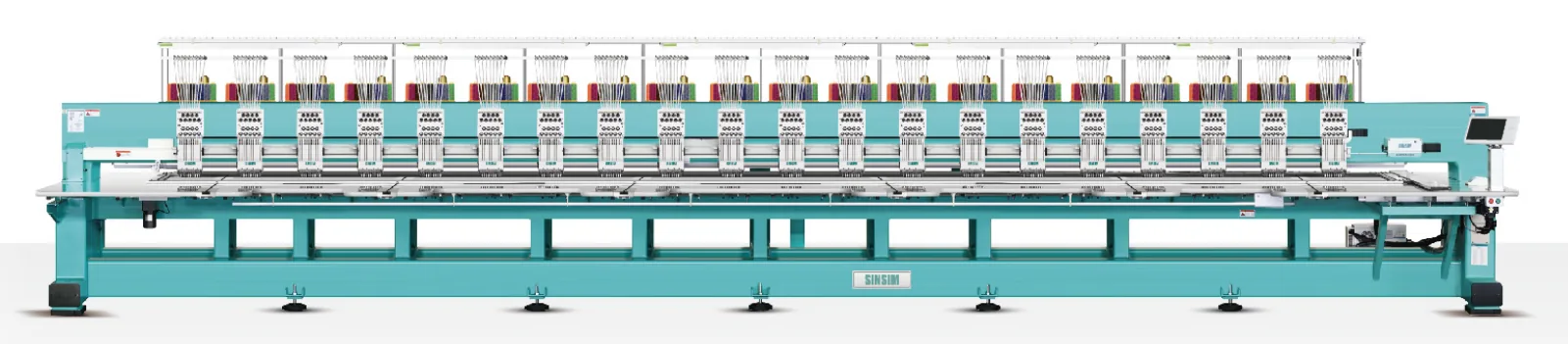

GARMENT PIECE EMBROIDERY MACHINE
Flagship high-output series for garment panels, patches and crafts — fine embroidery on thick and thin fabrics alike.
Full Details

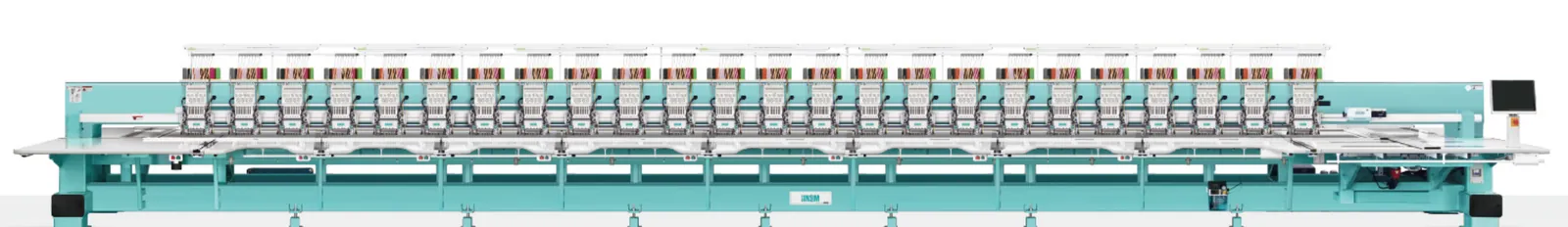

FABRIC EMBROIDERY MACHINE
High-speed embroidery on knitted, woven, cotton/linen, leather, polyester and synthetic fibers — up to 1,500 RPM across 8–31 heads.
Full Details

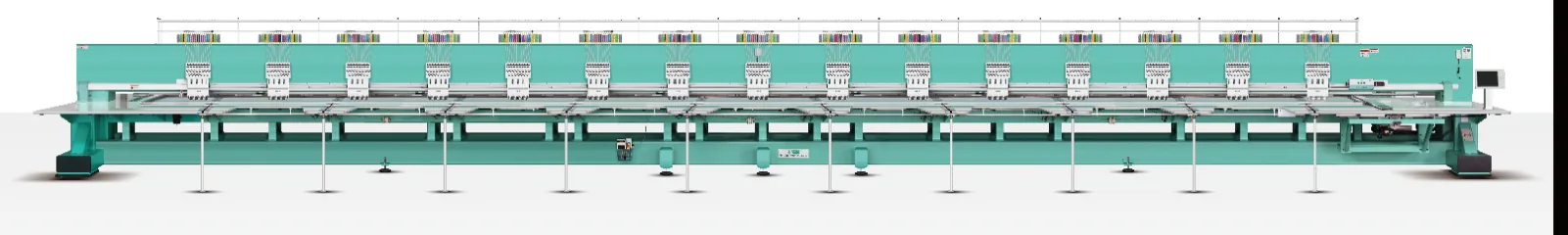

HOME TEXTILES EMBROIDERY MACHINE
