Flat Embroidery Machine Series
Home textiles embroidery machine
Large-format embroidery for bed sheets, quilt covers and pillowcases.
- Heads
- 15 – 28
- Needles
- 15
- Max speed
- 1,500 RPM
HC1515-800mmSINSIM home textile embroidery machine series demonstrates exceptional performance on home textile products including bed sheets, quilt covers and pillowcases, with versatile applications extending to daily household items, delivering multifunctional customized embroidery solutions for fashion, healthcare and specialized requirements.
What the home textiles is built with.
- Optional head structures: Dual-Cam Dual-Drive / Double Crank / Electronic Presser Foot, with maximum speed of 1,500 RPM.
- High-precision gantry-milled monolithic frame structure.
- Industrial-grade high-performance computerized embroidery control system.
- Optional high-precision floating embroidery frame or C-frame.
- Imported high-speed wear-resistant rotary hook with auto-lubrication.
- Servo motor drive, main drive with high-strength imported timing belts.
- Omnidirectional 3D lubrication system.
- High-precision custom gear transmission box.
- High-performance self-locking upper thread clamping structure.
- Optional trimming systems: High-efficiency stepper motor static cutter / Lead screw cutter / AC servo cutter.
- Optional head jump systems: Stepping motor jump or electromagnet jump.
- High-precision high-speed lead screw color change system.
- Large-stroke dedicated high-precision drive / transmission system.
Models and specifications
All 11 configurations listed in the official catalogue. Scroll sideways on a phone to see every column.
General machine specifications
| Model | Needles | Heads | Head interval (mm) | Embroidery area (mm) | Inner frame size (mm) | Machine size (mm) |
|---|---|---|---|---|---|---|
| HC1515 | 15 | 15 | 1200 | 1300*1800 | 18140*1840 | 20910*4277 |
| HC1516 | 15 | 16 | 1000 | 1100*1550 | 16140*1590 | 18710*3777 |
| HC1517 | 15 | 17 | 1200 | 1300*1500 | 20540*1540 | 23310*3677 |
| HC1518 | 15 | 18 | 1000 | 1100*1600 | 18140*1640 | 20710*3877 |
| HC1519 | 15 | 19 | 1100 | 1200*1800 | 21040*1840 | 23710*4277 |
| HC1520 | 15 | 20 | 900 | 1000*1600 | 18140*1640 | 20610*3877 |
| HC1520 | 15 | 20 | 1000 | 1100*1600 | 20140*1640 | 22710*3877 |
| HC1522 | 15 | 22 | 900 | 1000*1500 | 19940*1540 | 22410*3677 |
| HC1523 | 15 | 23 | 800 | 900*1400 | 18540*1440 | 20910*3477 |
| HC1524 | 15 | 24 | 800 | 900*1400 | 19340*1440 | 21710*3477 |
| HC1528 | 15 | 28 | 700 | 800*1300 | 19740*1340 | 22010*3277 |
Specifications and descriptions on this page are taken from the official Sinsim full-range catalogue 2025 (pages 15–16). Dimensions are in millimetres as printed. Sinsim builds to order, so confirm the final configuration with us before purchase.
What it produces.
Built with brands the industry trusts.
Sinsim builds with internationally recognised component brands, as featured in its official catalogue. Optional sequin, bead, cording, laser and boring devices are described on our devices page.
- Groz-Beckert
- Schmetz
- Organ
- Hirose
- Dotec
- Koban
- Desheng
- Kobest
Related machines

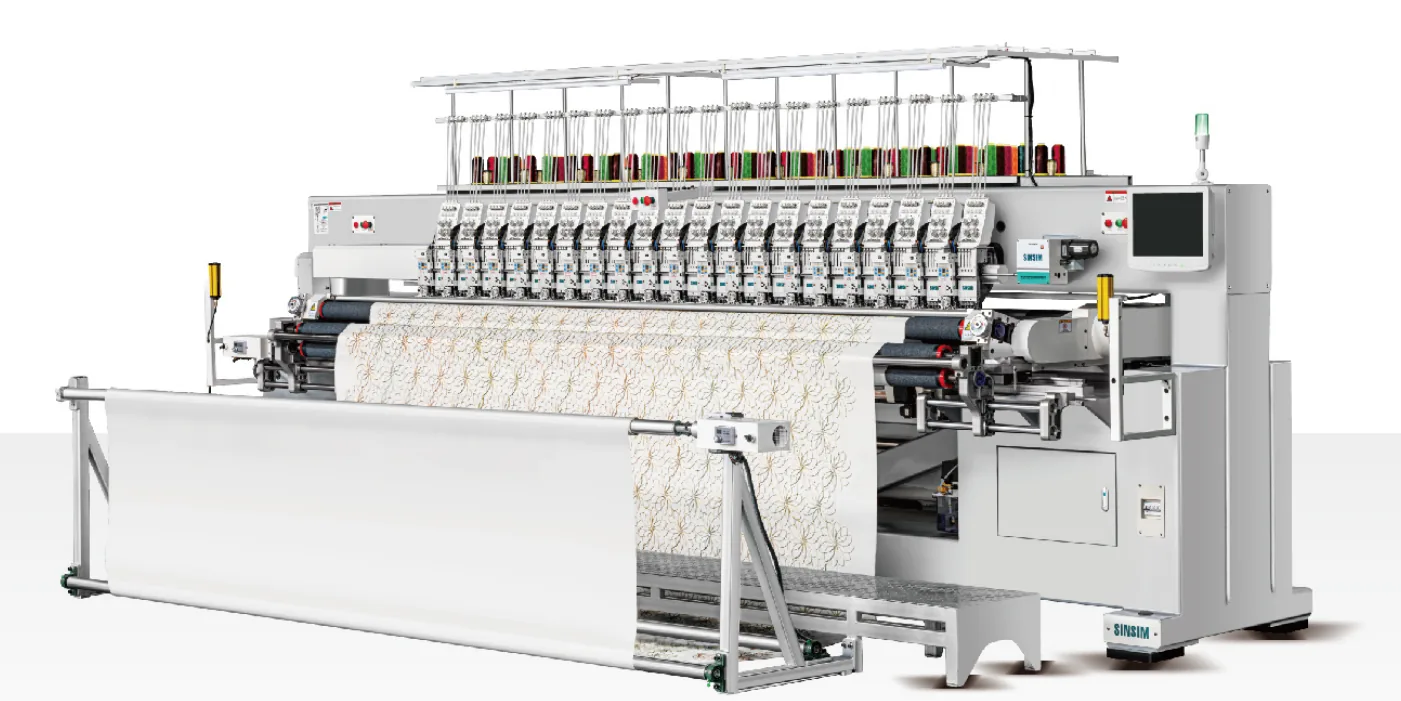

QUILTING EMBROIDERY MACHINE
